FM513V-01-E

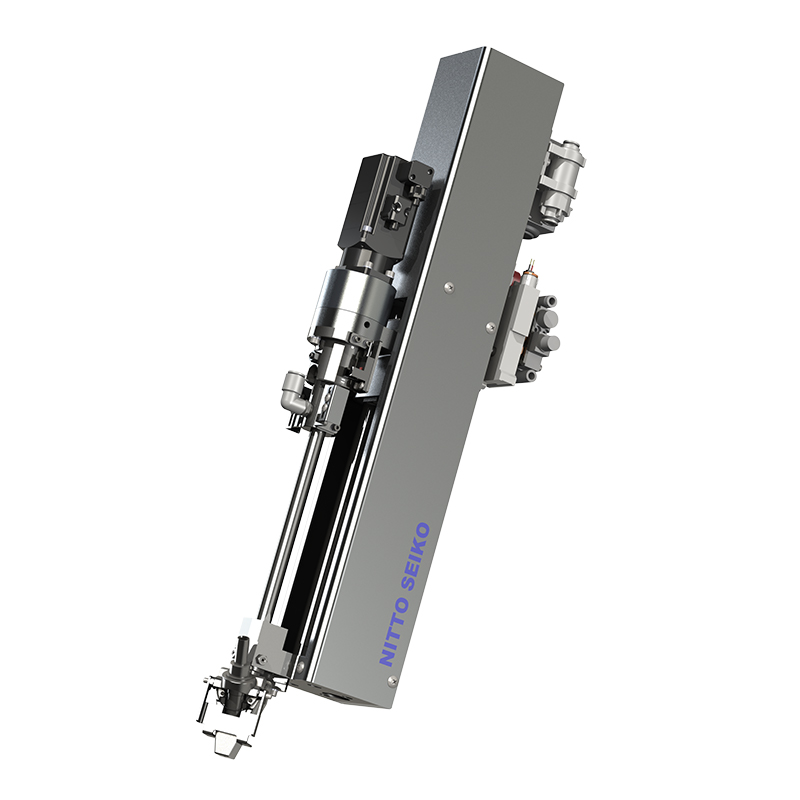

Single Spindle Screw Driver - FM513V-01-E KX Single-spindle automatic screwdriving unit with linear slide operation and vacuum suction driver bit operation. The vacuum suction feature allows the fastener to be retained in the screw guide during driver stroke descent without chuck body advancement.
Screw Sizes: M2-M5 (Max length 18mm)
Torque Range: 0.29 - 3.92 Nm
Maximum chuck stroke is 100mm (3.94"").

Includes:
FF503H-S - Feeder with single blowfeed escapement. The feeder is an oscillating centerboard hopper feeder with inline chute rails and horizontal positive-motion vibratory track to insure proper feeding to the escapement. An electric motor with belt drive and slip clutch features shall actuate the centerboard hopper blade assembly. Basket capacity of each centerboard feeder is approximately 0.45mL. General screw diameter range - M2 - M5. Max length 25mm.

KX100-T2-A*. KX Series brushless AC servo motor. Reliable design offers superior life and less to maintain. Current control and resolver for highly accurate torque / speed / and angle control. Torque Range: 0.29 -3.92 Nm (across all models. Individual torque ranges vary per model.)
Max RPM: 1430 - 3000

SD550 Series Controller - 120VAC. Sensor input for transducer control. Multiple program selections available. External I/O capabilities. Preprogrammed for all fastening situations.
