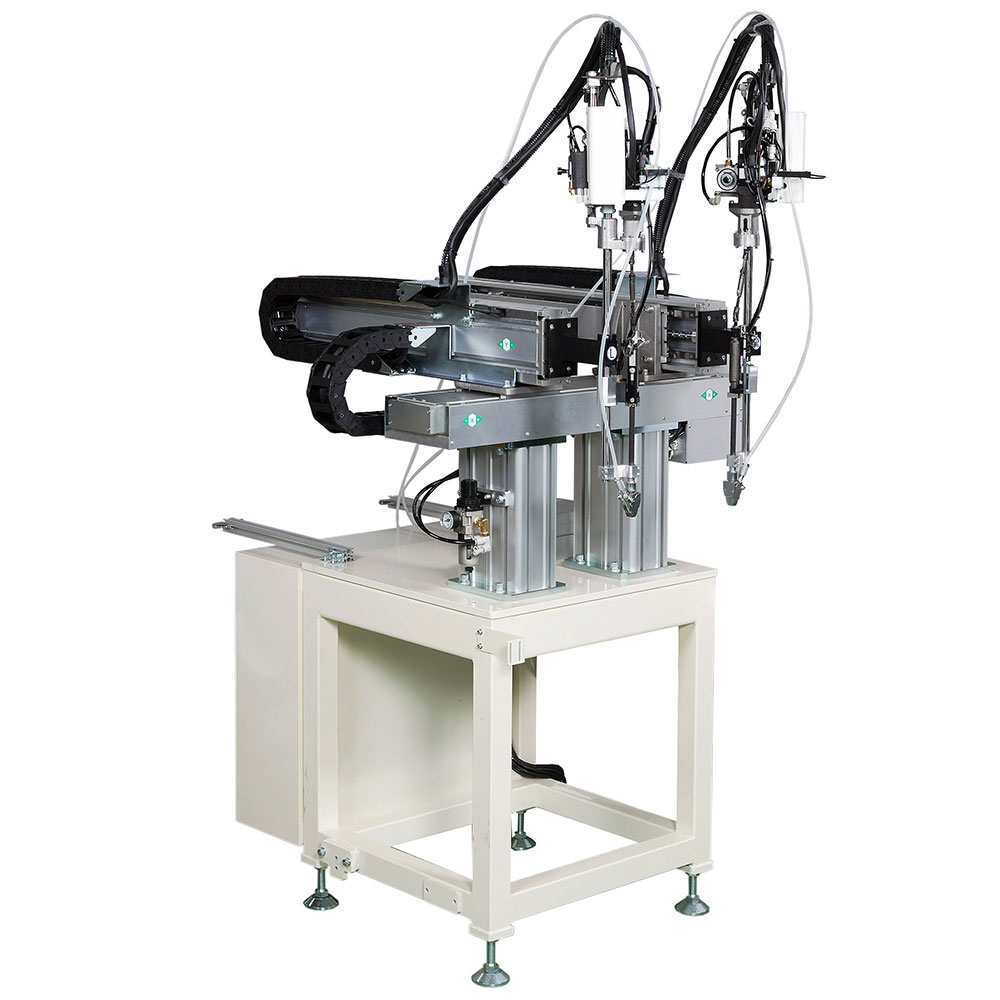

Cartesian Style Dual Driver Screw Driving Robot - Standard SR580DB-Z with NX Screw Driving Robots. The robot consists of XX/YY/ZZ-axes. X/Y/Z axes are powered by AC servo motors, while the screwdriver stroke is powered by a AC servo motor and the spindle rotation is powered by a NITTO driver. The screws will be automatically blowed by means of our centerboard hopper screwfeeder equipped with a single-shuttle air escapement.

Standard Axis (other configurations available)
X:800mm Y:300mm Z:100mm

Includes (2) FF503-H Feeders and (2) FM513-V Drivers
