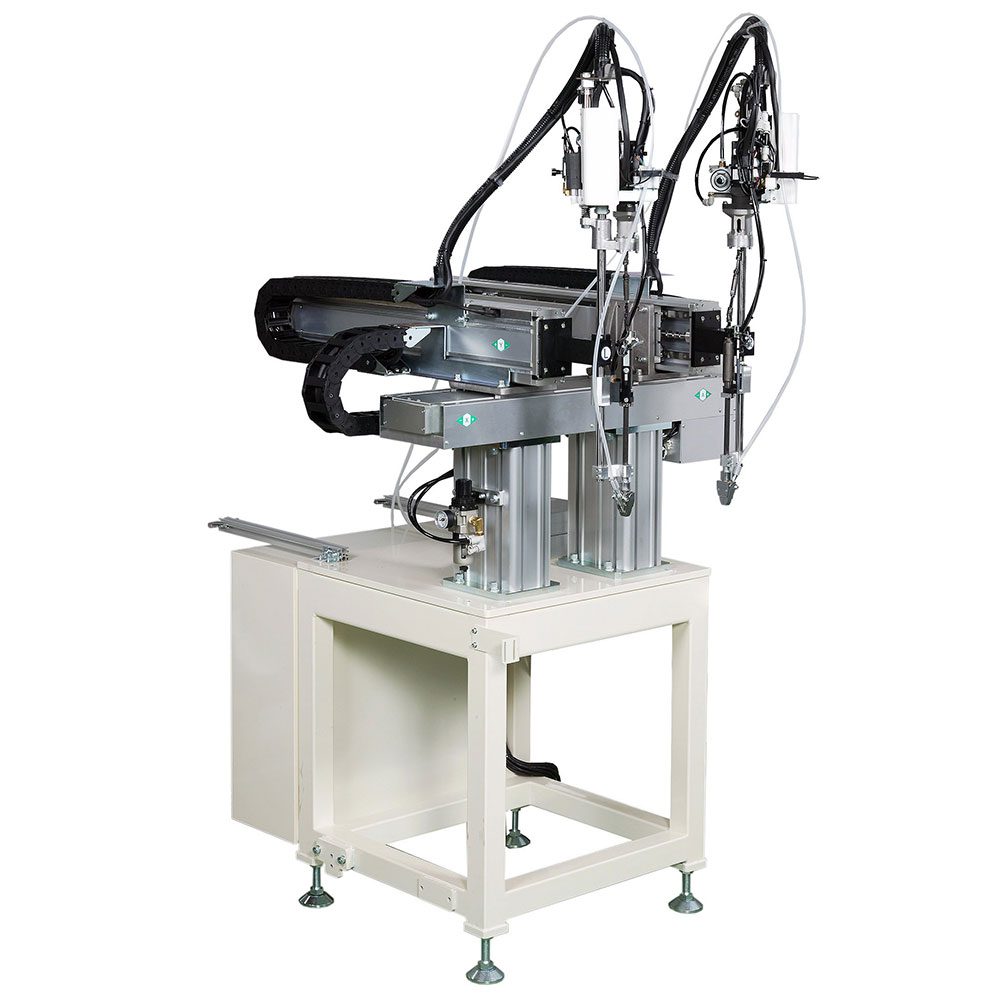

Cartesian Style Screw Driving Robot - Standard SR580F-Z with NX screwdriving robots. The robot consists of X/Y/Z-axes. X/Y/Z axes are powered by AC servo motors, while the screwdriver stroke is powered by a AC servo motor and the spindle rotation is powered by a NITTO driver. The screws will be automatically blowed by means of our centerboard hopper screwfeeder equipped with a single-shuttle air escapement.

Standard Axis (other configurations available) X:800mm Y:300mm Z:100mm

Includes (1) FF503-H Feeders and (1) FM513-V Driver
