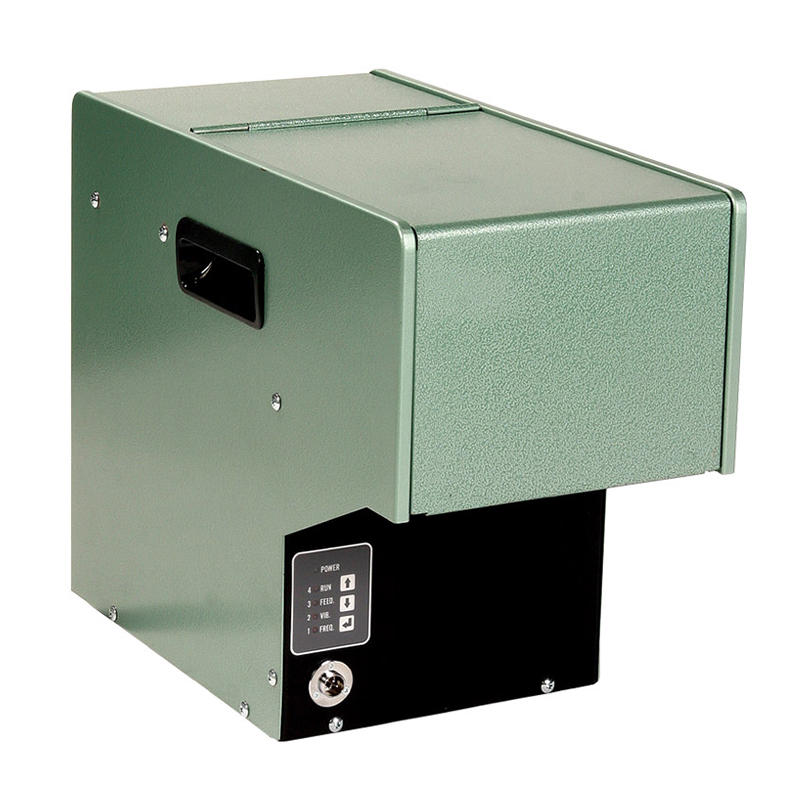

Center Board Type Fastener Feeder - FF503H Center Board Type Fastener Feeder with single blow feed escapement.  The feeder is an oscillating centerboard hopper feeder with inline chute rails and horizontal positive-motion vibratory track to insure proper feeding to the escapement.  An electric motor with belt drive and slip clutch features shall actuate the centerboard hopper blade assembly.  Basket capacity of each centerboard feeder is approximately 0.45L.

General screw diameter range - M2 - M5. Max length 25mm.
